6.5 Neurons and synapses:

Neurons transmit the message, synapses modulate the message.

Nature of science: Cooperation and collaboration between groups of scientists—biologists are contributing to research into memory and learning.

Understandings:

∑ - Neurons transmit electrical impulses.

  • One form of internal communication in the body occurs through nerve impulses in the nervous system
  • Neurons transmit electrical impulses by allowing the passage of charged ions across their membranes in response to stimuli
  • Neurons consist of a cell body with a nucleus and cytoplasm, an elongated nerve fibre called an axon, and short-branched nerve fibres called dendrites


∑ - The myelination of nerve fibres allows for saltatory conduction.

  • Nerve fibres conduct electrical impulses along the length of their axons. Some of these axons such as interneurons are unmyelinated, and therefore the impulse travels much slower
  • The greater the diameter, the greater the speed of the nerve impulse
  • Some axons are surrounded by a mixture of protein and phospholipids called myelin that collectively form a myelin sheath
  • Many layers of myelin are deposited around the axon by special cells called Schwann cells
  • The myelin sheath insulates the axon and greatly increases the speed of the nerve impulse
  • In between the myelin are gaps called the nodes of Ranvier
  • In myelinated neurons, the impulse can jump from one node to the next. This is called saltatory conduction
  • This allows myelinated neurons to conduct impulses up to 100x faster than unmyelinated axons


MS effect on neuronhttp://nebraskamedical.staywellsolutionsonline.com/MultimediaRoom/VideoLibrary/?e=0#player:138,v1013​

∑ - Neurons pump sodium and potassium ions across their membranes to generate a resting potential.

  • The time period when a neuron that is not conducting a nerve impulse, but is ready to conduct one, is called the resting potential.
  • This membrane potential is due to an imbalance of positive and negative charges across the membrane
  • Sodium-potassium pumps pump Na+ out of the axon and K+ into the axon
  • Three Na+ are pumped out of the neuron and two K+ are pumped into the neuron
  • This creates a concentration gradient of Na+ (outside to in) and of K+ (inside to out)
  • The membrane is also much more permeable to K+ as Na+, so K+ leaks back out of the neuron through leak channels
  • This means the Na+ concentration is much greater outside the neuron
  • There are also negatively charged ions permanently located in the cytoplasm of the neuron
  • These conditions create a resting membrane potential of -70 mV inside the neuron


Sodium/potassium pump video - https://www.youtube.com/watch?v=fHRC8SlLcH0​

∑ - An action potential consists of depolarization and repolarization of the neuron.

  • Action potentials are rapid changes in membrane potentials
  • This consists of a rapid depolarization (change from negative to positive when sodium diffuses into the neuron) and a rapid repolarization (change from positive to negative when potassium diffuse out of the neuron)
  • The arrival of an action potential caused by a stimulus causes a depolarization of the membrane as Na+ channels begin to open.
  • If the membrane potential reaches a threshold level of -50mV. Many more voltage-gated Na+ channels open and Na+  rapidly diffuses into the neuron
  • The inside of the neuron becomes more positively charged than the outside of the neuron (depolarization)
  • K+ channels open and K+ ions diffuse out of the neuron making the inside negative again (repolarization)
  • After the action potential, there is a refractory period where the impulse cannot go back in the same direction. This ensures a one-way nerve impulse


Action potential -http://highered.mheducation.com/sites/0072943696/student_view0/chapter8/animation__voltage-gated_channels_and_the_action_potential__quiz_1_.html

http://www.psych.ualberta.ca/~ITL/ap/ap.htm

http://highered.mheducation.com/sites/0072495855/student_view0/chapter14/animation__the_nerve_impulse.html

∑ - Nerve impulses are action potentials propagated along the axons of neurons.

  • As a depolarization occurs in one part of the neuron, the positive charge triggers the Na+ channels to open in the nearby regions causing an action potential to occur.
  • This action potential will cause a depolarization in the next region.
  • The propagation of action potentials will continue along the axon of the neuron.
  • Nerve impulses move in one direction along the neuron from one end of the neuron to the other end
  • A refractory period occurs after depolarization which prevent the electrical impulse from traveling backwards along the axon


Propagation https://www.youtube.com/watch?v=pbg5E9GCNVE

∑ - Propagation of nerve impulses is the result of local currents that cause each successive part of the axon to reach the threshold potential.

  • Propagation of nerve impulses along the axon results from the diffusion of Na+ ions from the area that was just depolarized to the neighbouring area that is still polarized inside the axon
  • When a part of the axon depolarizes, the localized are inside the axon becomes more positive as Na+ diffuses into the axon through voltage gated channels
  • Outside the axon the concentration of  Na+ is less in the depolarized region, so sodium diffuses from the polarized region towards the depolarized region
  • The adjacent area inside the axon that is still polarized (more negative)
  • The higher concentration of Na+ inside the depolarized region diffuses towards the polarized (more negative) region inside the axon
  • These local currents causes the adjacent region to become more positively charged.
  • When this happens, the membrane potential of the adjacent region becomes more positive from -70mv to -50mV (threshold potential)
  • This results in a depolarization in the neighbouring region, as Na+ voltage-gated channels open and Na+ diffuses into the axon




























Good videohttps://www.youtube.com/watch?v=Sa1wM750Rvs

β - Skill: Analysis of oscilloscope traces showing resting potentials and action potentials.

  • Membrane potentials can be measured by using electrodes  on the inside and the outside of the membrane of the neuron
  • These potentials can be measured by using a oscilloscope, which displays a graph, similar to the one on the left
  • Time is put on the x axis and membrane potential in terms of voltage s placed on the y-axis
  • The rising and falling spike shows the depolarization and repolarization periods of the action potential

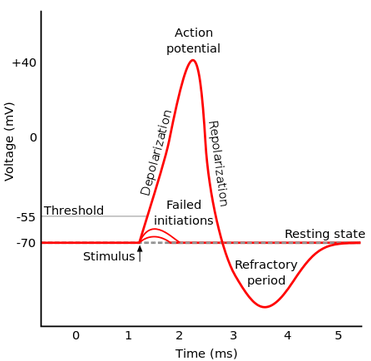

Action Potential

http://www.codeproject.com/KB/recipes/1035958/300px-Action_potential.svg.png

***Do data based questions on page 324***

∑ - Synapses are junctions between neuron; between neurons and receptor; effector cells.

  • Synapses are junctions or structures between the pre-synaptic and post-synaptic membrane of two cells in the nervous system
  • The junction can be between a neuron and an effector such as a muscle or a gland
  • It can be between two different neurons. Many of these connections occur in the CNS (brain and spinal cord)
  • A junction also exists between the sense receptor cells and the sensory neurons
  • Neurotransmitters are chemicals diffuse across a synapse from pre-synaptic membrane to post-synaptic membrane to send a signal to the next cell


∑ - When presynaptic neurons are depolarized they release a neurotransmitter into the synapse.

  • As the nerve impulse reaches the axon terminal of the presynaptic neuron, thepositive charge from the depolarization causes voltage-gated channels permeable to Ca2+ to open.
  • Ca2+ flows into the presynaptic neuron increasing the amount of Ca2+ in the presynaptic neuron.
  • This Ca2+ causes vesicles containing neurotransmitters to bind to the membrane and release their neurotransmitters into the synaptic cleft (space between pre and post synaptic neuron).
  • These neurotransmitters diffuse across the synaptic cleft and bind to receptor sites on the membrane of the post synaptic neuron.
  • The binding of these neurotransmitters open ion channels allowing ions such as Na+ to diffuse into the post synaptic neuron.
  • This influx of positive charge possibly leads to an action potential and adepolarization in the post synaptic neuron.
  • The neurotransmitter is reabsorbed by the presynaptic neuron or broken down in the synapse by enzymes.


























Animation: http://highered.mcgraw-hill.com/sites/0072495855/student_view0/chapter14/animation__transmission_across_a_synapse.html

Crash course https://www.youtube.com/watch?v=x4PPZCLnVkA

***Data based questions page 325***

∑ - A nerve impulse is only initiated if the threshold potential is reached.

  • The threshold potential is the critical level to which a membrane potential must be reach in order to initiate an action potential
  • Neurons fire or a nerve impulse is generated by an “all or nothing”
  • When a stimulus occurs, some Na+ channels open causing the membrane potential to become more positive
  • If enough Na+ diffuses into the neuron (-50mV to -70mV) and action potential is generated
  • At a synapse, binding of a neurotransmitter at the post-synaptic membrane causes Na+ to diffuse into the neuron (if excitatory)
  • This can cause a depolarization of the neuron if enough neurotransmitters are released


β - Application: Secretion and reabsorption of acetylcholine by neurons at synapses.

  • Acetylcholine is a neurotransmitter
  • It is largely used at the neuromuscular junction, meaning it is released by motor neurons and binds to receptors on muscles
  • It is also used in the autonomic nervous system
  • Acetylcholine is created in the presynaptic terminal by combining a water-soluble nutrient called choline with an acetyl group
  • Acetylcholine is secreted by the presynaptic membrane of a neuron
  • The neurotransmitter diffuses across the synapse and binds to a receptor on the postsynaptic membrane (causing an action potential if a threshold is reached)
  • Once it has released from the receptor, an enzyme called acetylcholinesterase breaks down into choline and acetate
  • Choline is reabsorbed back into the pre-synaptic neuron where it is combined with another acetyl group to form another acetylcholine neurotransmitter


Two videos on Acetylcholine –

https://www.youtube.com/watch?v=o4Srx4mUmaI

https://www.youtube.com/watch?v=0-KmO0Lg7Kw

β - Application: Blocking of synaptic transmission at cholinergic synapses in insects by binding of neonicotinoid pesticides to acetylcholine receptors.

  • Neonicotinoids bind to acetylcholine receptors in cholinergic synapses in the CNS of insects
  • Acetylcholinesterase does not break down neonicotinoids therefore binding is irreversible
  • Acetylcholine now can’t bind and neural transmission is stopped
  • The insects go through paralysis and then death
  • A benefit to this pesticide is that it is very effective in killing pests and it is not highly toxic to humans and mammals
  • The problem is that it also effects beneficial insects such as honey bees. There is conflicting evidence if this is the case or not
  • Many places such as the EU and Ontario, Canada has banned neonicotinoid pesticides


http://www.huffingtonpost.ca/2014/11/25/ontario-bees-pesticide-neonicotinoids-neonics_n_6221800.html

http://www.bbc.com/news/science-environment-22346626

β - Application:  The social effects of the abuse of psychoactive drugs could be considered, as could the use of the neurotoxin Botox for cosmetic treatments.

http://www.coastreporter.net/community/columnists/alcohol-consumption-in-canada-1.2170791

http://addictions.about.com/od/substancedependence/g/psychoactive.htm

http://www.examiner.com/article/cannabis-use-linked-to-substance-use-disorders

Utilization:  An understanding of the workings of neurotransmitters and synapses has led to the development of numerous pharmaceuticals for the treatment of mental disorders.

 6.6 Hormones, homeostasis and reproduction

Hormones are used when signals need to be widely distributed.

Understandings:

∑ - Insulin and glucagon are secreted by β and α cells of the pancreas respectively to control blood glucose concentration.

  • Blood glucose concentration is carefully monitored by negative feedback mechanisms.
  • Cellular respiration is constantly lowering blood glucose levels.
  • Receptors in the pancreas sense when the blood glucose level is too low.
  • Alpha (α) cells in the islets of Langerhans in the pancreas secrete glucagon into the bloodstream.
  • Glucagon stimulates the liver to breakdown stored glycogen into glucose which is released into the bloodstream.
  • Blood glucose levels rise back to their normal limits.
  • After a person eats, digestion breaks large carbohydrates into glucose molecules.
  • Glucose levels rise in the blood.
  • If the glucose levels get too high, receptors sense the increased glucose levels causing the pancreas to secrete insulin by the Beta cells (β) of the islets Langerhans.
  • Insulin stimulates the absorption of glucose from the blood into skeletal muscles and fat tissue, and thus allowing the liver to convert glucose into glycogen (animal carbohydrate storage molecule).
  • Glucose levels decrease back to the normal range.


β - Application: Causes and treatment of Type I and Type II diabetes.

The doctors videohttps://www.youtube.com/watch?v=yENeJ70S5QE

Type I diabetes
https://www.youtube.com/watch?v=Qi6LYIhlFdw

  • Is an autoimmune disease characterized by the inability of the pancreas to produce insulin. The insulin producing β-cells of the pancreas are attacked and destroyed by one’s own immune system.
  • This type of diabetes usually develops in children, but can occur at any age.
  • Therefore, the body loses the ability to take up glucose into its cells and convert glucose into glycogen.
  • People that have type I diabetes must take insulin shots or injections.


Type II diabetes

  • Occurs when the insulin receptors on certain body cells lose their ability to process or respond to insulin.
  • Pancreas still produces insulin.
  • Type II diabetes is usually a result of obesity, age, lack of exercise and/or genetic predisposition.
  • Type II diabetes is usually considered late onset as it usually occurs later on in life.
  • Insulin injections are not needed. Diabetes II can be treated by lifestyle and diet changes.
  • Most common form of diabetes.


***Do the data based questions on page 331***

∑ - Thyroxin is secreted by the thyroid gland to regulate the metabolic rate and help control body temperature.

  • Thyroxin is a hormone secreted by the thyroid gland of the endocrine system
  • Thyroxin contains iodine; therefore, prolonged deficiency to iodine in the diet prevents the production of thyroxin
  • Thyroxin is important in the regulation of the body’s metabolic rate
  • The body’s metabolic rate is the amount of energy a body uses at rest; combination of the catabolic and anabolic reactions
  • Since thyroxin causes an increase in the body’s metabolic rate, there is an increase in oxygen consumption and the hydrolysis of ATP; thereby causing an increase in the body’s temperature
  • Increase in thyroxin stimulates the breakdown of lipids and the oxidation of fatty acids
  • Thyroxin also stimulates carbohydrate metabolism, including the uptake of glucose and the breakdown of glycogen into free glucose
  • In a regular person, if the bodies temperature drops, a release in thyroxin will stimulate heat production causing the body’s temperature to rise
  • If there is an excessive amount of thyroxin in the body, hyperthyroidism can occur
  • If there is an insufficient amount of thyroxin in the body, hypothyroidism can occur
  • Some of the symptoms of hypothyroidism are weight gain, loss of energy, feeling cold all the time, forgetfulness and depression


∑ - Leptin is secreted by cells in adipose tissue and acts on the hypothalamus of the brain to inhibit appetite.

  • Leptin is a hormone made by adipose cells that helps to regulate energy balance by inhibiting hunger.
  • Leptin acts on the receptors in the arcuate nucleus (collection of neurons) of the hypothalamus to regulate appetite in order to achieve energy homeostasis
  • The concentration of leptin in the blood is controlled by food intake and the amount of adipose tissue in the body
  • If the amount of adipose tissue in an individual increases, then their concentrations of leptin also increases, leading to long term suppression of appetite and reduced food intake
  • In obese individuals a decreased sensitivity to leptin can occur, resulting in an inability the recognize when they are full

Journal article on Leptin and regulation of body weight in mammals http://www.nature.com/nature/journal/v395/n6704/full/395763a0.html

  • Article shows that mice containing a recessive/recessive allele (ob/ob) produce a truncated version of the leptin hormone
  • This led into severe obesity in these mice as the signal that tells the brain of the mice they are full (leptin) didn’t work anymore


β - Application: Testing of leptin on patients with clinical obesity and reasons for the failure to control the disease.

Leptin and obesity: https://www.youtube.com/watch?v=oN3woHJ7ZDY

Shorter version http://www.hhmi.org/biointeractive/leptin-feedback-control-system

  • The discovery of how mice become obese because of the lack of the hormone leptin and the subsequent treatment of the mice with leptin injections, led to human trials to decrease obesity
  • However, trials with humans have had mixed response since the physiology of humans is much different then mice
  • Since most humans have quite a high leptin concentration, it was determined that the many of obesity cases where caused by a change in the receptor protein for leptin, not in the production of leptin
  • A double blind study was conducted by the biotech company Amgen, showed that injections of leptin to many of these individuals, since their receptors didn’t work, failed to control obesity. In individuals that experienced weight loss, there was a big discrepancy in the amount of weight that was lost
  • There also were other side effects such as skin irritation and swelling.


∑ - Melatonin is secreted by the pineal gland to control circadian rhythms.

  • Melatonin is a hormone made by the pineal gland, a small gland in the brain.
  • The secretion of melatonin by the pineal gland is controlled by cells in the hypothalamus
  • Light exposure to the retina is relayed to the suprachiasmatic nucleus (SCN) of the hypothalamus. These fibers from the hypothalamus relay a message to the nerve ganglia of the spinal cord which is relayed back to the pineal gland to release melatonin.
  • Melatonin helps control your sleep and wake cycles (circadian rhythms).
  • Very small amounts of melatonin are found in foods such as meats, grains, fruits, and vegetables.





















http://www.vivo.colostate.edu/hbooks/pathphys/endocrine/otherendo/pineal.html

  • An internal 24- hour clock controls your natural cycle of sleeping and waking hours.


  • Melatonin levels generally begin to rise in the mid to late evening, remaining high for most of the night, and then drop in the early morning hours.


  • Light from the sun can also affect how much melatonin your body produces. During the shorter days of the winter months, your body may produce melatonin either earlier or later in the day than usual. This change can lead to symptoms of seasonal affective disorder (SAD), or winter depression.


  • Natural melatonin levels slowly drop with age. Some older adults make very small amounts of it or none at all.


β - Application: Causes of jet lag and use of melatonin to alleviate it.

  • The SCN of the hypothalamus and the pineal gland continual set the circadian rhythm of the place the person is departing from.
  • Therefore, when a person lands in a country that is many time zones different than the origin, they feel sleepy in the day and awake at night
  • Jet lag will only last a few days, as the body adjusts to the new times when the light is detected by the cells in the retina during a different time period


Skill: Annotate diagrams of the male and female reproductive system to show names of structures and their functions.























∑ - A gene on the Y chromosome causes embryonic gonads to develop as testes and secrete testosterone.

  • The Y chromosome (small one below) has a gene called the SRY gene that causes the embryonic gonads to become testes and begin secreting testosterone
  • SRY codes for a protein called TDF (testis-determining factor) that stimulates the expression of other genes located on the Y chromosome that  cause testis development
  • If there are two X chromosomes, the gonads develop as ovaries


∑ - Testosterone causes pre-natal development of male genitalia and both sperm production and development of male secondary sexual characteristics during puberty.

Testosterone

  • Secreted in the testes of males or the early stage testosterone-secreting cells that will become testes.
  • Aid in the development and maturation of the male genitalia as a fetus at about the 8th to 9th week.
  • During puberty, testosterone aids in the development of male secondary sexual characteristics such as pubic and facial hair, enlarged penis, broad shoulders, muscle mass, deepening of voice and bone density.
  • Stimulates production of sperm and promotes the male libido (sex drive).


∑ - Estrogen and progesterone cause pre-natal development of female reproductive organs and female secondary sexual characteristics during puberty.

  • If the SRY gene on the Y chromosome is not present in the embryo, the gonads develop into ovaries
  • Estrogen and progesterone which are secreted by the mother’s ovaries and then by the placenta, will cause the female reproductive organs to develop in the absence of testosterone
  • During puberty, estrogen and progesterone cause the development of secondary sexual characteristics in females, including breast development, menstrual cycle and pubic and armpit hair


∑ - The menstrual cycle is controlled by negative and positive feedback mechanisms involving ovarian and pituitary hormones.  The roles of FSH, LH, estrogen and progesterone in the menstrual cycle are expected.

FSH (Follicle stimulating hormone)

  • Produced and secreted by the anterior pituitary gland.
  • Stimulates the growth of the follicles in the ovaries to create a mature Graafian follicle.
  • Promotes the thickening of the follicle wall.
  • Stimulates the secretion of the hormone estrogen.


LH (luteinizing hormone)

  • Produced and secreted by the anterior pituitary gland.
  • Triggers the release of the egg (ovulation).
  • Stimulates the growth of the corpus luteum (secretes estrogen and progesterone).
  • Stimulates the secretion of hormone estrogen and progesterone.


Estrogen

  • Produced by the developing follicles in the ovaries and the corpus luteum.
  • Promotes the thickening of the uterine wall (endometrium) and the growth of blood vessels, in preparation of egg implantation.
  • Inhibits FSH and LH when the estrogen levels are high (around same time as ovulation). This would prevent the development and release of another egg.


Progesterone

  • Produced by the ovaries and the corpus luteum.
  • Helps maintain the thickening of the uterine wall for egg implantation.
  • Inhibit the production of FSH and LH.


https://www.youtube.com/watch?v=usEIVynA0Ck


**Do data-based questions on page 338**

β - Application: The use in IVF of drugs to suspend the normal secretion of hormones, followed by the use of artificial doses of hormones to induce superovulation and establish a pregnancy.

  • Generally, IVF treatment begins by taking drugs to halt the regular secretion of the hormones FSH and LH. This, in turn, stops the secretion of progesterone and estrogen and effectively allows the doctor to take control of the timing and egg production of the woman’s ovaries
  • The woman is then injected with large amounts of FSH to induce the production of many Graafian follicles.
  •  LH is also injected to promote the release of many ovules (eggs)
  • This is called superovulation, which can produce between 10 and 20 eggs
  • The eggs are then stimulated to mature by injections of HCG (Human Chorionic Gonadotrophin), a hormone usually secreted by the developing embryo
  • The eggs are surgically removed from the ovary of the woman.
  • Sperm is collected from the male individual.
  • Many sperm (50,000-100,000) are mixed with the eggs in a petri dish.
  • The sperm and eggs in the petri dish are incubated at 37ºC (body temperature).
  • The eggs are analyzed for successful fertilization (two nuclei inside the egg).
  • Healthy embryos are selected and are transferred into the female uterus for implantation (up to 3 healthy embryos are transferred into the uterus to increase the chance of implantation).

Pregnancy test is given after about 2 weeks.

IVFhttps://www.youtube.com/watch?v=GeigYib39Rs

Nature of science: Developments in scientific research follow improvements in apparatus—William Harvey was hampered in his observational research into reproduction by lack of equipment. The microscope was invented 17 years after his death.

β - Application: William Harvey’s investigation of sexual reproduction in deer.

  • William Harvey was best known for his discovery of the circulation of the blood, also was interested in sexual reproduction and how life is formed.
  • Aristotle’s theory was called the seed and soil theory, which stated that the male produces a seed (sperm) which then forms an egg when it mixes with menstrual blood of the mother. The egg then develops into a fetus inside the mother and eventually “voila” you have a baby
  • Harvey studied the uterus of the deer during mating season by killing them and then dissecting them expecting to find eggs; however, Harvey only found signs of fetal development 2 to 3 months after mating season
  • He concluded that Aristotle’s theory of seed and soil was incorrect, but then he was also incorrect in stating that the fetus doesn’t come from the mixture of the male and female seeds.
  • He knew he had not come up with the correct method of sexual reproduction
  • William Harvey failed to solve the sexual reproduction mystery because he was not able to view the fusion of gametes or embryonic development as effective microscopes were not yet available


Interesting video on Harveyhttp://www.smithsonianmag.com/science-nature/meet-william-harvey-misunderstood-genius-human-anatomy-180953682/?no-ist

Utilization:  Hormones are used in a variety of therapies such as replacement therapies.


Aims:  Scientists are aware that the drugs women take infertility treatment pose potential risks to health. Should scientific knowledge override compassionate considerations in treating infertile couples?

Review Questions



6.1 Digestion and absorption:

Nature of science: Use models as representations of the real world—dialysis tubing to model absorption in the intestine.

Understandings:

β - Skill: Production of an annotated diagram of the digestive system.


Structure
Function
Mouth/

Oral Cavity







Esophagus






Stomach






Small Intestine







Pancreas







Liver







Gall Bladder








Large Intestine


















Check out the Inner Body website to see where everything fits into your body. You can also use this site the fill in the boxes above.

∑ - The contraction of circular and longitudinal muscle of the small intestine mixes the food with enzymes and moves it along the gut.

  • The contraction of the circular and longitudinal muscle of the small intestine helps mix (mechanical digestion) the food with enzymes and moves the semi-digested food (bolus) along the gut in a process called peristalsis
  • These muscles are made up of smooth muscle
  • The process by which continual waves of contraction and relaxation (peristalsis) of the circular and longitudinal muscle occur along the muscle layers surrounding the small intestine is controlled by the autonomic nervous system
  • Food is transported slowly through the small intestine to allow for maximum digestion and absorption of nutrients


Video showing peristalsis
https://www.youtube.com/watch?v=o18UycWRsaA (turn off the music as it is terrible)

Smooth muscle function
https://www.youtube.com/watch?v=yzQAgfivX74

∑ - The pancreas secretes enzymes (amylase, lipase and an endopeptidase) into the lumen of the small intestine.


  • Enzymes are biological catalysts that speed up the rate of reaction in chemical digestion.
  • Enzymes in digestion catalyze hydrolysis reactions.
  • Pancreatic juice secreted into small intestine contains enzymes such as:
  • Endopeptidases – example trypsin (breaks apart the peptide bond between amino acids in polypeptides)
  • Lipases – catalyzes the hydrolysis of lipids (triglycerides and phospholipids)
  • Amylases - digestion of starch.
  • Pancreatic juice is alkaline (basic) to allow enzymes to work at an optimal pH (around 7-8 in the small intestine).
  • The pancreas is controlled by the enteric nervous system and through hormones produced and released by the stomach.
  • Enzymes are produced by ribosomes in the pancreatic gland cells, excreted by exocytosis into smaller ducts, which converge to form the pancreatic duct. Pancreatic juice flows through the pancreatic duct into the lumen of the small intestine


























http://2010.igem.org/wiki/images/5/57/ESBS-Strasbourg-pancreas1.png

∑ - Enzymes digest most macromolecules in food into monomers in the small intestine (starch, glycogen, lipids and nucleic acids are digested into monomers and that cellulose remains undigested).  Some hydrolytic enzymes have economic importance, for example, amylase in the production of sugars from starch and in the brewing of beer.

  • Enzymes released by the small intestines break down macromolecules into smaller molecules called monomers through catabolic reactions (hydrolysis is the type of specific reaction)
  • The following is a table showing the enzyme, source, substrate, products




Enzyme
Source
Breaks Down (substrate)
Products Formed (products)
pH
Amylase
Salivary glands and pancreas
STARCH
MALTOSE
Neutral to slightly basic
Maltase
Walls of the epithelial cells of the SI
MALTOSE
GLUCOSE
Slightly Basic
Lactase
Walls of the epithelial cells of the SI
LACTOSE
GLUCOSE AND GALACTOSE
Slightly Basic
Sucrase
Walls of the epithelial cells of the SI
SUCROSE
GLUCOSE AND FRUCTOSE
Slightly Basic
Lipase
Pancreas
LIPIDS
FATTY ACIDS AND GLYCEROL
Slightly Basic
Phospholipase
Pancreas
PHOSPHOLIPIDS
FATTY ACIDS, GLYCEROL AND PHOSPHATE
Slightly Basic

Proteases/Peptidases

Such as Trypsin


Pancreas
POLYPEPTIDES
SHORTER PEPTIDES OR DIPEPTIDES
Slightly Basic
Dipeptidases
Walls of the epithelial cells of the SI
DIPEPTIDES
AMINO ACIDS
Slightly Basic
Nucleases
Walls of the epithelial cells of the SI
NUCLEIC ACIDS SUCH AS DNA AND RNA
NUCLEOTIDES
Slightly Basic



  • Please note that some carbohydrates such as cellulose cannot be digested by humans as we lack the enzymes needed to break down cellulose
  • This is why a number of grass-eating animals have specialized digestive systems to breakdown cellulose
  • Cellulose is an insoluble dietary fibre that helps move waste through our digestive system and prevents constipation


Hydrolytic enzymes such as amylase are used in the brewing of beer to breakdown the starchy endosperm of barley seeds to produce maltose (malt sugar) thus having a great economic importance


Here is a video on the process
https://www.youtube.com/watch?v=OWX7a6waHX8 (just watch  the first few minutes)

∑ - Villi increase the surface area of epithelium over which absorption is carried out.

  • Villi are finger-like projections that make the surface of the small intestine look highly folded. These projections increase the surface area (by about 10X) available for absorption (the process of taking substances into the cells and blood).
  • Microvilli are small hair-like projections attached to the villi to further increase surface area.
  • The outermost layer of the villi is thin epithelial cells to allow nutrients to easily move across a short distance into the blood.
  • A dense network of capillaries close to the epithelium allows a large amount of nutrients to move into the blood.
  • Lacteals, which are a part of the lymphatic system, run up the middle of the villi. The lacteal allows for the absorption of the products of lipid digestion which are not easily absorbed by the capillaries.


∑ - Villi absorb monomers formed by digestion as well as mineral ions and vitamins.

Absorption – process where small molecules and nutrients pass into the blood vessels (capillary beds) in the wall of the intestine.

Assimilation – products of digestion that are absorbed into the blood are transported to the various tissues. These molecules are used to build up larger molecules that become part of the structure of the tissue or body.

These products include the following monomers:

  • Monosaccharides such as glucose, fructose, and galactose
  • Amino acids from the breakdown of proteins
  • Nitrogenous bases from the breakdown of nucleotides
  • Glycerol and fatty acids, which are the products of lipids are absorbed by the lacteal inside the villi.
  • Mineral ions such as sodium, potassium and calcium, and vitamins such as vitamin C, are also absorbed by the villi in the small intestine

























http://sciencelearn.org.nz/

∑ - Tissue layers should include longitudinal and circular muscles, mucosa and epithelium.

The epithelial layer is the inner tissue layer, that is in contact with the lumen
The next layer is the mucosa layer; in between the epithelial cells near the lumen and the sub-mucosa layer
Circular muscle is on the inside of the longitudinal muscle towards the lumen of the small intestine. The longitudinal muscles are at a right angle to the circular muscles.

β - Skill: Identification of tissue layers in transverse sections of the small intestine viewed with a microscope or in a micrograph.


Here are some examples of micrographs with transverse sections of the small intestine






















∑ - Different methods of membrane transport are required to absorb different nutrients.

  • During absorption nutrients from food must pass from the lumen of the small intestine to the cells in the capillaries or lacteals in the villi.
  • Many types of transport are used to move different nutrients into and out of the epithelium cells of the villi


These modes of transport will be outlined using two products of digestion.

Glucose
























http://www.uic.edu/classes/bios/bios100/lectures/circ.htm



Since glucose has many hydroxyl groups it is a polar molecule and cannot pass through the cell membrane by simple diffusion and therefore relies on different types of facilitated diffusion in order to move into and out of the epithelial cells of the villi. (The numbers 1-4 here, match with numbers on the two diagrams above and below).

1)    As seen above Na+ is pumped out of the cytoplasm of the epithelial cells into the interstitial space by sodium/potassium pumps.

-       This creates a concentration gradient between the lumen and the cytoplasm of the epithetical cells.

-       This means Na+ ions want to diffuse into the epithelial cells.

-       Co-transport proteins in the membrane of the microvilli, allow a sodium ion and a glucose molecule to be transported together into the epithelial cell.

This type of facilitated diffusion is passive but requires active transport of the Na+ ions out of the cell to create the concentration gradient.

2)    Specific glucose channels allow glucose to diffuse from the epithelial cells into the blood cells of the capillaries


https://courses.candelalearning.com/anatomyphysiology2/chapter/23-7-chemical-digestion-and-absorption-a-closer-look/

3)    Fatty acids, glycerol and monoglycerides, which are products of lipid digestion can diffuse into epithelial cells from the lumen by passive diffusion

4)    Inside the epithelial cells, fatty acids and monoglycerides reform into triglycerides, and therefore can’t move back out into the lumen because of their size. These lipids combine together with proteins and phospholipids to form lipoproteins. The lipoproteins are then excreted by exocytosis, enter the lacteal and are carried away by the lymph

Applications and skills:

β - Application: Processes occurring in the small intestine that result in the digestion of starch and transport of the products of digestion to the liver.

  • Many catabolic reactions take place in the small intestine
  • These reactions are catalyzed by a number of enzymes that break down starch into smaller disaccharides and trisaccharides, which are further broken down into monosaccharides.
  • These reactions need to occur since the starch molecule is much too large to pass through the membranes of the small intestine
  • Starch-a long chain of α (alpha) glucose molecules used as glucose storage by plants
  • Starch consists of two types of molecules, amylose which linear and amylopectin which is branched (look at your notes from topic 2)

























  • Amylose 1,4 bonds can be broken apart by amylase to form the disaccharide maltose and the trisaccharide maltotriose
  • Amylose cannot break the 1,6 bond seen in amylopectin
  • These larger fragments containing this 1,6 bond of amylopectin are called dextrins
  • These dextrins are further broken down by another enzyme into maltose
  • Finally, all the maltose is hydrolyzed into glucose by maltase in order for it to be transported from the lumen of the small intestine into the blood in the capillaries surrounding the small intestine




β - Application: Use of dialysis tubing to model absorption of digested food in the intestine.

See handout on Manage Bac

Review

Build a body
https://www.brainpop.com/games/buildabodydigestivesystem/

Click on the above link and drag and drop digestive system parts to build a body for review. After this is complete, click on the game quiz and do the multiple choice quiz.

Crash Course on Biology.
https://www.youtube.com/watch?v=s06XzaKqELk

Cartoon on digestion
https://www.youtube.com/watch?v=VwrsL-lCZYo

6.2 The blood system:  The blood system continuously transports substances to cells and simultaneously collects waste products.

∑ Understandings

β - Applications and skills:

∑ - Arteries convey blood at high pressure from the ventricles to the tissues of the body.

Arteries

  • Take blood away from the heart to tissues around the body
  • Because large volumes of blood are flowing directly out of the heart, arteries must be able to withstand the high pressure and high blood volume created when the ventricles contract.
  • Very thick wall of smooth muscle tissue surrounding arteries makes them strong and elastic in nature with a narrow lumen (area where the blood flows).
  • Elastin fibres store energy when they are stretched by the flow of blood. As they recoil the blood is further propelled through the artery.
  •  The thick smooth muscle layer in the arteries can be used to help regulate blood pressure by changing the diameter of the arteries.


∑ - Arteries have muscle cells and elastic fibres in their walls.




















http://loretocollegebiology.weebly.com/blood-vessels.html

Tunica externa – outer layer made from connective tissue
Tunica media– thick layer containing smooth muscle and elastin fibres
Tunica intima– endothelium layer that lines the inside of the artery

Video on structure https://www.youtube.com/watch?v=VMwa6yC3r-s

∑ - The muscle and elastic fibres assist in maintaining blood pressure between pump cycles.

  • When the ventricles of the heart contract (systole), the blood leaves the heart through the arteries at a very high pressure
  • The blood pushes the walls of the arteries outwards, thus increasing the diameter of the lumen and creating potential energy within the elastic walls of the artery
  • As the blood passes after the heart has contracted, the pressure drops and the stretched elastic walls snap back, squeezing the blood in the lumen to conserve energy and preventing the pressure from becoming too low inside the arteries (the minimum pressure is called the diastolic pressure)
  • However, since this pressure still relatively high, blood flow in the arteries is fairly consistent and steady, even though the heart pumps in a pulsating manner


∑ - Blood flows through tissues in capillaries. Capillaries have permeable walls that allow exchange of materials between cells in the tissue and the blood in the capillary.

  • Capillaries have a very narrow diameter (10 µm) with thin surrounding endothelium cells to allow the shortest distance for O2 to diffuse into the blood from the alveoli in the lungs and from the blood into the body tissues. CO2 also can easily diffuse out of the blood into the alveoli in the lungs and from the tissue into the blood after respiration.
  • The walls have pores, making them very permeable allowing plasma to leak out and form tissue fluid, which contains oxygen, glucose and all other substances contained in the blood plasma, except proteins (too large to fit through the pores in the capillary wall)
  • Highly branched networks of capillaries increase the surface area, maximizing the amount of nutrients and gases that can move in and out of the capillaries.
  • Because they are highly branched, the blood slows down to allow efficient transfer of O2 and CO2 into and out of the capillaries.
  • Below are examples what capillaries look like. The pores or holes that allow certain substances to leave get larger from left to right, with Sinusoid capillaries having the largest openings. Specific names of these types of capillaries are not required.





















http://cnx.org/content/col11496/1.6/,

∑ - Veins collect blood at low pressure from the tissues of the body and return it to the atria of the heart.

  • Transport blood back to the heart from the capillary beds in tissues.
  • Very low blood pressure and therefore the walls can be thin. Blood is pushed back to the heart through the contraction of skeletal muscles. As the muscles contract, the veins are squeezed, pushing the blood back towards the heart
  • Large lumen allows large amounts of blood to slowly return to the heart because the blood has to slow down as it passes through the capillary beds.


β - Skill: Identification of blood vessels as arteries, capillaries or veins from the structure of their walls. (Make sure you look at the pictures above as well)




Arteries
Veins
Capillaries
Size (diameter)
Larger than 10µm
Variable but much larger than 10µm
Approx.. 10µm
Thickness of the wall and diameter of the lumen

Thick walls

Narrow lumen

Fairly thin walls, large lumen diameter
Very thin walls, one cell thick
Layers of the walls
3 (tunica externa, media and intema)

3 (tunica externa, media and intema)

Thinner than arteries

One layer – tunica intima
Muscle and Elastic Fibres
Large amounts of these fibres
Small amounts of these fibres
none
Valves
noneyes none



∑ - Valves in veins and the heart ensure circulation of blood by preventing backflow.

  • Since the blood pressure in the veins is quite low because the blood slows down considerably when it reaches the capillary bed and there is not another pump like the heart to speed up the flow and increase the pressure, veins have a series of valves to prevent backflow.
  • Valves are flaps of tissue that form pockets to prevent blood from flowing backward in the wrong direction
  • If the blood starts to flow backward, it gets caught in the pocket valves causing that section of the vein to fill.
  • When another contraction occurs and the blood starts to flow in the correct direction, the valves open allowing the blood to continue its movement towards the heart.


∑ - There is a separate circulation for the lungs.

  • Humans and other mammals have two different circulations of blood (blood is pumped twice).
  • One circulation (systemic circulation) goes from the left ventricle to the rest of the body and back to the right atrium.
  • The second circulation (pulmonary circulation) goes from the right ventricle to the lungs and returns to the left atrium of the heart.


Below is a more in-depth description of the circulation of blood in humans

Pulmonary Circulation

  • Blood flows from the right atrium into the right ventricle through the R.atrio-ventricular valve. The right atrium contracts right when the ventricle is almost full in order to push the rest of the blood into the ventricle.
  • The right ventricle contracts sending the blood out of the ventricle (past a semi-lunar valve), through the pulmonary arteries to the lungs.
  • The atrio-ventricular valve shuts preventing backflow into the atrium.
  • The blood flows through capillaries obtaining oxygen from the lungs and returning to the heart by the pulmonary veins; which empty into the left atrium.
  • This blood is actually returning to the heart from the lungs at the same time as the blood that returns to the right atrium from the rest of the body.


Systemic Circulation

  • The blood then flows into the left ventricle through an L atrio-ventricular valve.
  • The left ventricle contracts, sending the blood through another semi-lunar valve and out through the biggest artery in the body called the aorta.
  • Again the atrio-ventricular valve shuts, preventing backflow into the atrium.
  • The oxygenated blood flows to all the tissues and organs in the body to be used in aerobic respiration. (Arteries --> Arterioles --> Capillaries)
  • Blood then flows from the capillaries to the numerous venules and then through the different veins in the body
  • These will all eventually dump the blood into the inferior and superior vena cava
  • Blood returns to the right atrium of the heart flowing from the inferior vena cava (blood from lower body) and the superior vena cava (blood coming upper body and head).
  • Note: Both ventricles contract at the same time sending blood to the lungs and the other parts of the body.


Nature of science: Theories are regarded as uncertain—William Harvey overturned theories developed by the ancient Greek philosopher Galen on the movement of blood in the body.

β - Application: William Harvey’s discovery of the circulation of the blood with the heart acting as the pump.

  • How the blood circulates around our body was discovered in the seventeenth century by a man named William Harvey
  • Before this, much of the theories of how the circulation of the blood in the body worked were from Greek philosopher named Galen
  • He had theorized that blood was formed in the liver and then is pumped to back and forth between the right ventricle and the liver.
  • Some of the blood seeps into the left ventricle, where it meets the air from the lungs and becomes vital spirits and are distributed around the body by arteries. When some of the vital spirits reach the brain, they become animal spirits; which are then distributed throughout the body by the nervous system
  • Harvey studied medicine at Cambridge University
  • Harvey showed for the first time that the arteries and veins circulate blood through the whole body. He showed that the heart’s beat produces a constant circulation of blood through the whole body.
  • He showed that blood flow through the body was one-way and backflow was controlled by a series of valves
  • During systole, the heart acts as a muscular pump
  • The left ventricle supplies the rest of the system of arteries around the body and the right ventricle supplies the lungs


Interesting video on Harveyhttp://www.smithsonianmag.com/science-nature/meet-william-harvey-misunderstood-genius-human-anatomy-180953682/?no-ist

For further details please read this article online

http://www.famousscientists.org/william-harvey/


β - Application: Pressure changes in the left atrium, left ventricle and aorta during the cardiac cycle.

























http://cnx.org/contents/14fb4ad7-39a1-4eee-ab6e-3ef2482e3e22@6.4:128/Cardiac-Cycle

Atrial Systole (0 to 0.1 s)

  • Atria contract, pressure increases in the left and right atria, and the remaining blood is pumped into the ventricles (left atrium into left ventricle)
  • Ventricle walls relaxed and therefore the pressure is low
  • AV valves are open and semi-lunar valves are shut


Ventricular Systole (approx. 0.1 – 0.5 s)

  • Ventricles contract and the pressure increases dramatically in the ventricles
  • AV valves close (because of the pressure) preventing backflow and the semi-lunar valves open.
  • Blood is pumped out of the left ventricle into the aorta through the left semi-lunar valve
  • The pressure in the aorta increases
  • Pressure falls in the atria


Atrial and Ventricular Diastole (approx. 0.5 to 0.8)

  • Muscles in the walls of the ventricles and atria relax
  • The semi-lunar valves close
  • Since the pressure drops in the atria, blood flows into the left atrium from the pulmonary veins and into the right atrium via the vena cava
  • AV valves also open as the pressure in the ventricles drops below the pressure in the atria and blood flows from the atria into the ventricles (left atrium into the left ventricle through the left AV valve)
  • The pressure in the aorta drops but remains quite high throughout the cycle because of the elastic and muscle fibres in the walls


***Do Data-based questions on page 301***

∑ - The heartbeat is initiated by a group of specialized muscle cells in the right atrium called the sinoatrial node.

∑ - The sinoatrial node acts as a pacemaker.

∑ - The sinoatrial node sends out an electrical signal that stimulates contraction as it is propagated through the walls of the atria and then the walls of the ventricles.

  • Myogenic muscle contraction means the contraction is initiated by the cell itself, not an outside stimulus such as nerve impulse.
  • A cluster of these myogenic cells exist in the wall of the right atrium, which is collectively known as the sinoatrial node (SA node)
  • Since these cells initiate each heartbeat, they control the rate of a human’s heartbeat and are therefore called the pacemaker
  • When the pacemaker cells contract, because they are myogenic, they cause the muscle cells around them to contract as well spreading the action potential across the cardiac tissue of the heart
  • This causes the right and the left atria to contract, pushing the remaining blood into the ventricles
  • This electrical signal reaches another node called the AV node, causing a slight delay (approx. 0.1 seconds) before the signal is sent out to the rest of the heart, causing the ventricles to contract slightly later than the atria.
  • The electrical impulses are conducted by tiny bundles of muscle fibres called Purkinje Fibres, collectively known as the bundles of His


∑ - The heart rate can be increased or decreased by impulses brought to the heart through two nerves from the medulla of the brain.

  • The rate of the pacemaker can be affected by nerves connected to the medulla region of the brain.
  • Low blood pressure, high levels of CO2 (low pH) and low levels of oxygen, stimulate the heart to increase its rate and therefore deliver more oxygen to the tissues and remove more carbon dioxide
  • High blood pressure, low levels of CO2 (high pH) and high levels of oxygen, cause the heart rate to slow down.
  • Cardiac nerves which are part of the sympathetic nervous system cause the heart rate to increase.
  • The Vagus nerve that is part of the parasympathetic nervous system causes the heart rate to slow down
  • The medulla of the brain controls most of the autonomic functions of the body such as breathing, heart rate and blood pressure.


∑ - Epinephrine increases the heart rate to prepare for vigorous physical activity.

  • Cardiac nerves also cause the release of norepinephrine (adrenalin) from the adrenal glands during strenuous physical activity or times of high levels of stress. This is also known as the fight or flight response
  • The Vagus nerve causes the heart rate to slow down through the release of acetylcholine, which has an inhibitory action on the heart rate


β - Skill: Recognition of the chambers and valves of the heart and the blood vessels connected to it in dissected hearts or in diagrams of heart structure. A heart dissection will be carried out in class. The instructions are uploaded to Manage Bac.


































How the heart works https://www.youtube.com/watch?v=H04d3rJCLCE

Crash Course – Circulatory – Respiratory  https://www.youtube.com/watch?v=9fxm85Fy4sQ

β - Application: Causes and consequences of occlusion of the coronary arteries.  The social implications of coronary heart disease could be discussed.

  • Blood vessels that deliver oxygen and nutrient-rich blood to the cardiac muscle tissue of the heart to allow it to pump blood around the body are known as coronary arteries.


Causes

  • Artery walls become damaged as fat (low-density lipoproteins) are deposited under the endothelium and fibrous tissue builds up
  • Can result from a poor diet, over-eating, constant high blood glucose levels or smoking
  • The flow of blood is impeded and the heart has to work harder to pump blood to the tissue, increasing blood pressure
  • The smooth lining of the arteries begins to break down and form lesions called atherosclerotic plaques
  • Platelets can bind to these lesions, causing an inflammatory response creating a blood clot
  • The blood clot formed is called a thrombus and an embolus if it breaks free to travel through the bloodstream.


Consequences

  • If an embolus breaks free, it can get stuck in a smaller arteriole and cause a blockage of blood supply to that tissue, eventually causing that tissue to die
  • If this happens to the coronary arteries or arterioles in the heart, and enough of the tissue is deprived of oxygen, a myocardial infarction (heart attack) can occur
  • If an embolus reaches the brain, and enough of the brain is deprived of oxygen and nutrients, a stroke can occur
  • If coronary arteries are damaged, by-pass surgery can be performed, that takes an artery typically from a patient’s leg, replacing the damaged coronary artery
  • Coronary Angioplasty (balloon angioplasty) can be an alternative to a by-pass operation. A catheter (with an attached balloon)  is inserted in the arm or the leg of a patient and is guided to the obstructed artery by x-ray and tv monitors
  • A harmless dye is injected into the patient to determine exactly where is the blockage
  • The balloon is inflated to reestablish blood flow stretching the arterial wall and squashing the plaques


Theory of knowledge:  Our current understanding is that emotions are the product of activity in the brain rather than the heart. Is knowledge based on science more valid than knowledge based on intuition?

6.4 Gas exchange:  The lungs are actively ventilated to ensure that gas exchange can occur passively.

Understandings:

∑ - Ventilation maintains concentration gradients of oxygen and carbon dioxide between air in alveoli and blood flowing in adjacent capillaries.

  • Small single celled organisms can easily diffuse gas in and out of the cell as long as they are in an environment where concentration gradients exist for passive diffusion. For example, O2 in water can diffuse into a protist as long as the concentration of oxygen in the surrounding water is greater than the oxygen levels inside the protist cell.
  • On the other hand human bodies are surrounded and protected by layers of skin. Thecells in the tissue that need oxygen for respiration are too far away, too protected, and too numerous to allow direct diffusion with their environment.
  • Therefore, humans need a system to keep a fresh supply of Oand to get rid of excess CO2.
  • The ventilation system provides a fresh supply of O2 in the alveoli, allowing the oxygen to diffuse into the blood capillaries surrounding them
  • The oxygen is then transported to all the tissues in the body.
  • The CO2 in the tissues is transported by the blood to the lungs, where it diffuses into the alveoli and is exhaled into the surrounding atmosphere.
  • This fresh supply of O2 also makes sure that a steep concentration gradient exists where gas is exchanged to allow efficient exchange of O2
  • The blood arriving at the alveoli via the pulmonary arteries, arterioles  and then capillaries, is rich in  CO2, thus creating a concentration gradient between the capillaries and the alveoli, allowing CO2 to rapidly diffuse out of the blood in the capillaries into the alveoli


***Do data based questions on page 312***

β - Draw a diagram to show the structure of an alveolus and an adjacent capillary.

PRACTICAL

  • Monitoring of ventilation in humans at rest and after mild and vigorous exercise(ventilation rate and tidal volume should be measured).


∑ - Type I pneumocytes are extremely thin alveolar cells that are adapted to carry out gas exchange.

  • The walls of the alveoli are predominately made from a single layer of epithelial cells called Type I pneumocytes
  • These are flattened cells that are approximately 0.15 µm thick
  • Since the alveoli are surrounded by capillaries that are also only one cell thick, oxygen and carbon dioxide have a very short distance to diffuse into the blood from the alveoli and out of the blood into the alveoli respectively
  • This adaptation allows for a rapid rate of gas exchange


∑ - Type II pneumocytes secrete a solution containing surfactant that creates a moist surface inside the alveoli to prevent the sides of the alveolus adhering to each other by reducing surface tension.

  • About 5% of the inner surface of the alveoli consists of Type II pneumocytes
  • These cells secrete a liquid made of proteins and lipids called surfactant
  • This liquid allows oxygen to dissolve into the surfactant and then diffuse into the blood
  • It also provides a medium for carbon dioxide to evaporate into the air inside the alveoli in order to be exhaled


∑ - Air is carried to the lungs in the trachea and bronchi and then to the alveoli in bronchioles.

  • Air enters the respiratory system through the nose or mouth and travels through the pharynx and then the trachea (made from rings of cartilage)
  • The trachea divides into two bronchi (left and right)
  • Inside each lung the bronchi divide into many smaller tubes called bronchioles
  • These numerous bronchioles form a tree root-like structure that spreads throughout the lungs
  • Each bronchiole ends in a cluster of air sacs called alveoli




























∑ - Muscle contractions cause the pressure changes inside the thorax that force air in and out of the lungs to ventilate them.

β -Application: External and internal intercostal muscles, and diaphragm andabdominal muscles as examples of antagonistic muscle action

Ventilation consists of inhalation (inspiration) and exhalation (expiration)

Inhalation

  • External intercostal muscles contract pulling the ribs upwards and outwards.
  • The diaphragm which is a flat sheet of muscle extending across the bottom of the rib cage contracts and flattens out.
  • These two actions enlarge the thoracic cavity surrounded the lungs, thereby increasing the volume of the lungs.
  • When the volume of the lungs increases, the pressure inside the lungs decreases and becomes lower than the pressure in the surrounding atmosphere.
  • Since gas moves from higher pressure to lower pressure, air rushes into the lungs from the surrounding atmosphere to equalize the pressure.


Exhalation

  • The external intercostal muscles relax and the diaphragm snaps back to its original shape (domed shape).
  • This moves the ribs back down and inwards and decreases the volume of the thoracic cavity and the lungs.
  • This decrease in volume increases the pressure inside the lungs.
  • Since the pressure inside the lungs is now greater than the atmospheric pressure, and gas moves from high pressure to low pressure, air rushes out of the lungs into the surrounding environment.
  • NOTE: If there is a forced exhalation (push and squeeze the air out of the lungs) the internal intercostal muscles will also contract along with the abdominal muscles to pull the rib cage down and squeeze the organs in the abdomen


Summary

Inspiration
Structure
Expiration
contracts and flattens out
diaphragm
relaxes and returns to domed shape
relax
abdominal muscles
contracts – pressure formed in abdomen pushes organs up and helps push diaphragm into a dome shape
Contract moving ribcage up and out
external intercostal muscles
relax

relax
internal intercostal muscles
contract, moving ribcage down and in
increases
volume of the thoracic cavity and lungs
decreases
Decreases to below atmospheric pressure and therefore air flows in
pressure of the thoracic cavity and lungs
Increases to above atmospheric pressure and therefore air flows out



∑ - Different muscles are required for inspiration and expiration because muscles only do work when they contract.

  • When different muscles work together to perform opposite movements, they do so in an antagonistic fashion; when one muscle contracts the other will relax
  • When muscles contract and shorten (do work), they exert a pulling force that causes movement
  • The antagonistic muscle will relax and lengthen because of the pulling force of the other muscle; therefore no work is done
  • For example, when one breaths in air, the external intercostal muscles contract, moving the ribcage up and out and the internal intercostal muscles relax (biceps and triceps work in similar fashion in our arms). The opposite occurs during expiration.
  • Muscles therefore only cause movement in one direction while contracting (antagonistic pair relaxes). Movement in the other direction occurs when the other muscle of the pair contracts and the first muscle relaxes


Short video on antagonistic pairs https://www.youtube.com/watch?v=NoFxgMrjR_U

Applications and skills:

Nature of science: Obtain evidence for theories—epidemiological studies have contributed to our understanding of the causes of lung cancer.

Answer the following questions on epidemiological studies and lung cancer.

1)    What is epidemiology and why are these studies generally observational and not experimental?

2)    If you had to carry out an epidemiological study, how would you test the theory that smoking is a major cause of lung cancer?

3)    What are confounding factors, why are they a problem with epidemiological studies and how can you compensate for these factors?

β - Application: Possible Causes and consequences of lung cancer and emphysema.

Lung Cancer

Smoking

  • is the number one cause of lung cancer
  • there is an extremely high correlation with the number of cigarettes an individual smokes in a day and the incidence of lung cancer
  • Cigarettes contain a high number of carcinogens, such as polycyclic aromatic hydrocarbons and  nitrosamines
  • Second-hand smoke can also be considered a cause of cancer in non-smokers


Air Pollution

  • Air pollution from exhaust fumes containing nitrogen oxides, fumes from diesel engines and smoke from burning carbon compounds such as coal are a minor cause of lung cancer. This depends on where in the world you live and the air quality.


Radon Gas

  • In some parts of the world, this radioactive gas can leak out of certain rocks such as granite, accumulating in poorly ventilated buildings


Asbestos

Construction sites, factories and mines can have dust particles in the air. If steps aren’t taken to properly protect the workers, lung cancers can develop.

Lung cancer is a very serious disease and the consequences can be severe, especially if the cancer is not recognized early on.

  • If the tumour is large when it is discovered, metastasis might have occurred (cancer spreads to other parts of the body and forms secondary tumours). In these cases, mortality rates are very high. If the tumour is found early on, parts of the affected lung with the tumour can be removed and chemotherapy can be used to help kill the rest of the cancer cells. Re-occurrence of the disease is quite common.


Emphysema

  • Emphysema is another respiratory disease that is often linked to smoking
  • Emphysema is characterized by the loss of elasticity of the alveoli in the lungs, resulting in the destruction of lung tissue over time
  • Phagocytes (white blood cells that engulf foreign bacteria) usually prevent lung infections and produce a hydrolytic enzyme called elastase
  • An enzyme inhibitor usually prevents elastase from digesting lung tissue
  • Smokers lungs generally contain a high number of these phagocytes/macrophages in their blood
  • Since there is a higher level of phagocytes, more elastase is produced;however, not enough of the inhibitor that prevents elastase from digesting lung tissue
  • This results in the destruction of elastic fibres of the alveolar walls by the enzyme elastase
  • The alveoli can become over-inflated and fail to recoil properly
  • Small holes can also develop in the walls of the alveoli
  • The alveoli can merge forming huge air spaces and a lower surface area.
  • This destruction cannot be reversed


β - Application:  The social consequences of lung cancer and emphysema could be discussed.

Some interesting videos to discuss in class.

Social smoking campaign funny commercials https://www.youtube.com/watch?v=C8JoQ7_aYPw

Nine year old chain smoker from Indonesia https://www.youtube.com/watch?v=woVcHfnhBqI

Do e-cigarettes cause the same chronic lung problems?http://www.dailymail.co.uk/health/article-3073502/E-cigarettes-lead-chronic-lung-conditions-Vapour-gadgets-disrupts-cells-way-tobacco-smoke.html

Are all these things true? http://www.dailyrx.com/smoking-goes-beyond-lungs-affect-body-head-toe

The Doctors talk about smoking https://www.youtube.com/watch?v=JC5yWEyw7bs

Good anti-smoking commercial https://www.youtube.com/watch?v=2oHkTR4fXhE

Top 40 scary anti-smoking https://www.youtube.com/watch?v=9kKN8_aa38A

6.3 Defence against infectious disease:  The human body has structures and processes that resist the continuous threat of invasion by pathogens.

Nature of scienceRisks associated with scientific research—Florey and Chain’s tests on the safety of penicillin would not be compliant with current protocol on testing.

Aims:  The social, as well as the economic benefits of the control of bacterial diseases around the world, should be stressed.  Science has limited means in the fight against pathogens, as shown by the spread of new diseases and antibiotic-resistant bacteria.

Understandings:

Good Introduction to the Immune System:

https://www.youtube.com/watch?v=zQGOcOUBi6s

∑ - The skin and mucous membranes form a primary defence against pathogens that cause infectious disease.

  • Skin and mucous membranes are physical barriers against infection from pathogens.
  • Skin is constantly replacing its outermost epidermal layer of skin. These dead cells provide effective protection against foreign pathogens.
  • Skin also secretes a substance called sebum to lubricate the skin. The sebum also lowers the pH of the skin, which effectively helps inhibit bacterial growth.
  • Mucous membranes line the surfaces of the nasal cavity, trachea, bronchi, and bronchioles (surfaces that are exposed to the outside environment).
  • Mucous traps foreign particles and pathogens contained in the air before they reach the lungs.
  • Mucous contains lysozymes (enzymes) that can damage and kill pathogens.
  • Trapped pathogens can also be expelled through the mouth or nose, or swallowed and destroyed by the high acidity of the stomach.
  • Skin and mucous membranes are examples of non-specific immunity.



























Video on non-specific immune https://www.youtube.com/watch?v=Non4MkYQpYA

∑ - Cuts in the skin are sealed by blood clotting.

  • Blood clotting is the process in which cuts or broken blood vessels are repaired and sealed to prevent excessive blood loss.
  • When a blood vessel is broken or cut, blood platelets collect at the site of the damaged blood vessel forming a platelet plug.


∑ - Clotting factors are released from platelets.

The platelets and the damaged tissue release chemical factors called clotting factors.

∑ - The cascade results in the rapid conversion of fibrinogen to fibrin by thrombin.

  • The clotting factors convert the clotting protein prothrombin to its active form thrombin (enzyme).
  • The enzyme thrombin converts clotting protein fibrinogen (which is soluble) into the insoluble fibrous protein fibrin.
  • Fibrin forms a mesh at the point of the broken vessel further trapping other platelets sealing up the damaged vessel and forming a stable clot.
  • Once the damaged vessel has fully healed, the blood clot dissolves in the blood.


Diagram of Blood Clotting (to the right)

∑ - Application: Causes and consequences of blood clot formation in coronary arteries.

  • Coronary arteries are arteries that branch from the aorta and supply oxygen to the heart.
  • Individuals that have coronary heart disease sometimes form blood clots in these arteries
  • If the arteries are blocked, that part of the heart becomes deprived of oxygen and vital nutrients.
  • The heart can no longer produce the amount of ATP (through aerobic respiration) needed for the heart to work  properly
  • The individual is therefore at a high risk of having a possible fatal heart attack
  • Atherosclerosis is a disease of the arteries characterized by the deposition of plaques of fatty material on their inner walls.
  • The arteries become damaged and coarsened and the wall of the arteries is hardened by calcium salts.
  • This blocking of the arteries can lead to a heart attack


Some Causes

  • Smoking
  • Obesity and lack of exercise
  • Hypertension (high blood pressure)
  • Diabetes


∑ - Ingestion of pathogens by phagocytic white blood cells gives non-specific immunity to diseases.

  • Another type of non-specific immunity (not antigen-specific and a response is immediate) occurs when phagocytic leucocytes ingest and destroy foreign pathogens.
  • The main types of phagocytic leucocytes are called macrophages. When pathogens get past the physical barriers, macrophages will engulf foreign pathogens through endocytosis.
  • Pathogens are recognized as non-self cells by the structure of their protein coat.
  • Once the pathogen is engulfed, lysosomes within the macrophage contain hydrolytic enzymes that will digest and destroy the foreign pathogens.
  • Macrophages are the large white blood cells in the diagram below. Basophils, neutrophils and eosinophils are also involved in the non-specific immune response
























∑ - Production of antibodies by lymphocytes in response to particular pathogens gives specific immunity.

  • When a pathogen enters the blood, the specific antigen on the surface of the membrane is identified as being foreign or non-self
  • This stimulates a specific immune response in which antibodies are produced that are specific for that particular antigen
  • B-lymphocytes are white blood cells that produce antibodies that bind to the antigen on the invading pathogen
  • Each lymphocyte is able to produce one type of antibody; however, we have a vast diversity of lymphocytes that are able to respond to millions of foreign antigens
  • Once an antigen has been encountered the B-lymphocytes are stimulated to divide to produce a large amount of clones of themselves (clonal selection)
  • The active B-lymphocytes that are produced are called plasma cells which will begin to produce antibodies.
  • The plasma cells created, produce and release mass amounts of antibodies into the bloodstream.
  • These antibodies surround and bind to the antigens on the foreign pathogens.
  • Through a variety of different methods, the pathogens are destroyed by the antibodies and other white blood cells.


∑ - Some lymphocytes act as memory cells and can quickly reproduce to form a clone of plasma cells if a pathogen carrying a specific antigen is re-encountered.

  • Some of these divisions also produce B-cells called memory cells, which stay in the blood in case of a second infection to provide a quick response to the new infection.
  • The primary response is the production of antibodies to the initial challenge by the invading antigen.
  • The secondary response which is much quicker because memory cells are still in the blood occurs after a subsequent challenge by the same antigen.


Antigens

  • Chemicals that induce an immune response inside the body.
  • Antigens are actually proteins, glycoproteins or other macromolecules on the surface of the cell membrane of the pathogen that is recognized by a specific antibody, to stimulate the immune response.


Antibodies

  • Protein molecules produced by B-lymphocytes that recognize and bind to the antigens on the foreign pathogens.
  • Each antibody is specific to each type of antigen.
  • For example, a different antibody is produced in response to the influenza virus when compared to the antibody produced when a person is infected by the common cold.
  • Antibodies make the pathogen more recognizable to macrophages so that they are easily engulfed and destroyed
  • Antibodies also stop viruses from spreading by binding to host cells preventing the viruses from entering


The Cell Secret Immune System https://www.youtube.com/watch?v=v1MnNO4I9aU

Immune System Game

http://www.nobelprize.org/educational/medicine/immunity/game/index.html

Pandemic 2

http://www.learn4good.com/games/high-school-students-games/science-health.htm

∑ - Antibiotics block processes that occur in prokaryotic cells but not in eukaryotic cells.

  • Antibiotics are a type of drug or chemical that inhibits the growth of microorganisms; mainly bacteria
  • Antibiotics block cellular processes such as DNA replication, transcription, translation, and cell wall formation
  • The first antibiotic discovered by Alexander Fleming was identified as penicillin
  • Fleming was working on a culture of disease-causing bacteria when he noticed the spores of little green mold (fungi) on one of his culture plates.
  • He observed that the presence of the mold killed or prevented the growth of the bacteria by excreting antibacterial antibiotics


∑ - Viruses lack a metabolism and cannot, therefore, be treated with antibiotics. Some strains of bacteria have evolved with genes that confer resistance to antibiotics and some strains of bacteria have multiple resistance.

Since viruses lack their own metabolism, they have to use the chemical processes of a cell from a host that they infect
They are unable to reproduce on their own and cannot perform protein synthesis, transcription and other metabolic functions
Antibiotics work by blocking these vital processes in bacteria, killing the bacteria, or stopping them from multiplying
Since viruses do not perform their own metabolic reactions antibiotics such as penicillin and streptomycin, are ineffective in treating viral infections
Therefore treating viruses with antibiotics is not only useless and ineffective, but it can also create antibiotic resistance in bacterial strains eg. Methicillin-resistant Staphylococcus aureus

Video on Staph Infections: http://www.webmd.com/a-to-z-guides/video/truth-about-mrsa
Video on Antibiotic Resistance - Last line of Defence Breached in China

http://www.cbc.ca/news/health/antibiotic-resistance-colistin-1.3325942

http://www.cbc.ca/news/health/superbugs-antibiotic-resistance-un-1.3770176

Applications and skills:

∑ - Application: Florey and Chain’s experiments to test penicillin on bacterial infections in mice.

Video on Penicillin discovery https://www.youtube.com/watch?v=7qeZLLhx5kU

Another video https://www.youtube.com/watch?v=5RGs-2eNnjM

  • A bacteriologist named Alexander Fleming originally discovered Penicillin in 1928
  • Later on, two scientists named Florey and Chain were able to develop a method of growing Penicillin in liquid cultures and purifying Penicillin in these cultures.
  • They started by testing on mice infected with Streptococcus bacteria which would cause death in the mice if left untreated
  • Four mice were given Penicillin shots and four were left untreated
  • Within one day, all of the untreated mice were dead
  • Human trials on five individuals commenced when enough of the penicillin was created. All of these people survived their initial infection; however, a small child died when an artery behind his eye burst
  • After this, penicillin became widely produced and used by pharmaceutical companies


∑ - Application:  An understanding of immunity has led to the development of vaccinations.

  • Active immunity can be acquired through vaccination.
  • A vaccine is a weakened version of a pathogen.
  • It is introduced to the body through an injection, which causes a primary immune response to the pathogen.
  • This will create the plasma B-cells necessary to fight off the initial infection from the vaccine and the memory B-cells necessary for a secondary immune response if the person is exposed to the real pathogen.
  • This secondary response is much quicker and more intense producing more antibodies in less time
  • Sometimes “booster shots” are given which is a second round of vaccination that causes a secondary immune response.


Meningitis  http://www.scidev.net/sub-saharan-africa/children/news/vaccine-blow-meningitis-africa-path.html


Graph of a Primary and Secondary Immune Response Resulting from Exposure to an Antigen



















Measles Immunity: http://fred.publichealth.pitt.edu/measles/

Herd Immunityhttp://www.software3d.com/Home/Vax/Immunity.php

Another Simulation: http://www.theguardian.com/society/ng-interactive/2015/feb/05/-sp-watch-how-measles-outbreak-spreads-when-kids-get-vaccinated


∑ - Application: Effects of HIV on the immune system (a reduction in the number of active lymphocytes and a loss of the ability to produce antibodies, leading to the development of AIDS) and methods of transmission.

  • HIV (human immunodeficiency virus) is a retrovirus that causes AIDS, which is a condition in humans where the immune system fails and is susceptible to life-threatening opportunistic infections.
  • HIV targets helper-T cells because HIV can bind to the proteins on the T cells.
  • Helper-T cells play an important role in the production of clonal B lymphocyte cells, which produce antibodies for immune response.
  • Therefore the reduction of T cells will reduce the number of antibodies produced needed to fight off infection from invading pathogens.
  • This inability to fight off disease is what eventually causes the person to die.


Virus Evolution - https://www.youtube.com/watch?v=3Ms04x6MvMY

International-mindedness:  The spread and containment of diseases such as bird flu require international coordination and communication.

Aims:  The social, as well as the economic benefits of the control of bacterial diseases around the world, should be stressed.  Science has limited means in the fight against pathogens, as shown by the spread of new diseases and antibiotic-resistant bacteria.

Crash course Immunity: https://www.youtube.com/watch?v=CeVtPDjJBPU

IBWorld.me

IB Biology - Curriculum Notes

google.com, pub-8798963489553679, DIRECT, f08c47fec0942fa0
